Program running in the parallel mode
Now let's discuss how to run the created template in the parallel mode.
In fact, when you compile and run program from the IDE is is running as a single process.
To run the program in parallel mode, a "supervising" program is required, which, firstly,
provides running the required number of instances of the program and, secondly, intercepts
messages which are sent by these instances ("processes") and transfers them to their
It should be noted that the instances of a "real" (not training) parallel programs are usually run
on different computers connected in the network (cluster) or on supercomputers with a large
number of processors, because it provides the maximum efficiency of a parallel program. Of
course, to check correctness the training parallel program it is enough to run it on a single local
computer. However, the supervising program is required in this case, too.
The Programming Taskbook uses the special application from the MPICH system as a
supervising program. In the MPICH 1.2.5, it is named MPIRun.exe and is contained in the
MPICH\mpd\bin directory; in the MPICH2 1.3, it is named mpiexec.exe and is contained in the
MPICH2\bin directory. To run the executable file in parallel mode, it is enough to run the
appropriate supervising program (MPIRun.exe or mpiexec.exe) passing it the executable full
name, the required number of processes (i. e., running instances of the program), and some
additional parameters. Since while debugging the program such launches will have to be
performed repeatedly, it is desirable to create a batch file (bat-file) containing the call of the
supervising program with all necessary parameters. However, the process of testing
the parallel program will not be very convenient: every time after making the required
corrections to the program, you should recompile it, then leave the IDE and run the bat-file.
After checking the results of the program execution, you should return to the IDE again to make
subsequent changes to the program, and so on.
In order to simplify the process of launching the program in the parallel mode, Programming
Taskbook performs automatically many of required actions. Let's demonstrate this with the
example of our project for solving the MPI1Proc2 task, which is ready for launch. Press the

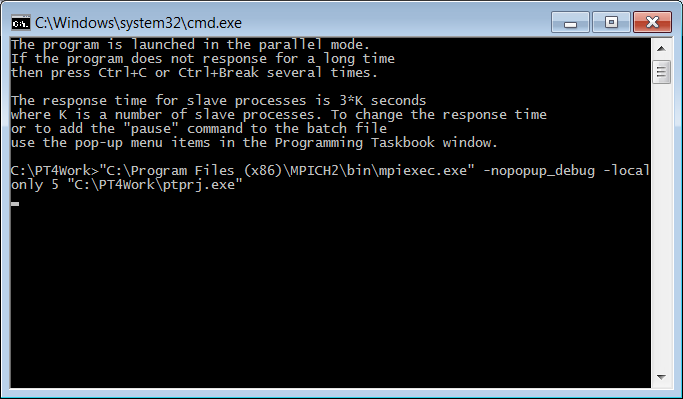

[F5] key, the program will be compiled and launched. As a result, a console window appears on the screen:
After several lines of information message in this window, a command line is displayed that
allows the ptprj.exe program to run in parallel mode under the control of mpiexec.exe. The
number "5", specified before the full name of the ptprj.exe file, means that the exe-file
will be launched in five instances. The -nopopup_debug option disables the output of
error messages in a separate window (since these messages will eventually be displayed in the
Programming Taskbook window), the parameter -localonly ensures that all processes of the
parallel program run on the local computer.

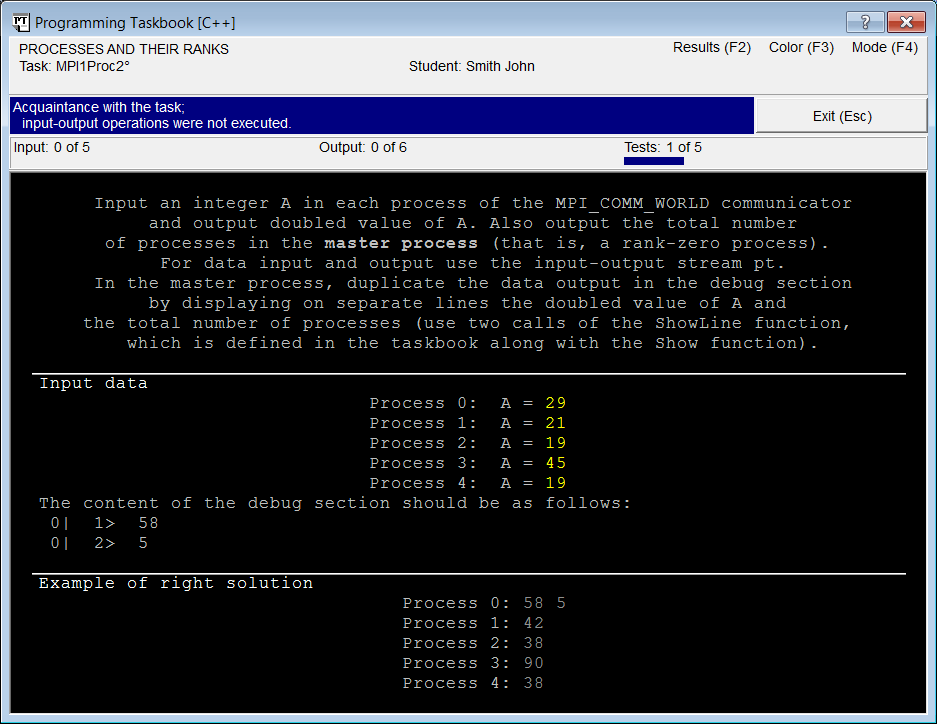

Immediately after the appearance of the console window, the Programming Taskbook window
will be displayed:
In our case, the program running is considered as acquaintance running because the processes
of our program do not perform input-output operations.
To finish the program we should close the Programming Taskbook window by clicking the
"Exit (Esc)" button or press [Esc] or [F5]. After closing the Programming Taskbook window the
console window also will be closed and we will return into the IDE.
Thus, we can run our program in the parallel mode from the IDE. This is due to a rather
complicated mechanism, which is implemented in the Programming Taskbook core. Describe
this mechanism briefly.
The program that had been launched from the IDE does not solve the task and is running in the
non-parallel mode. This instance of the program creates and run the batch file $pt_run$.bat,
which contains call of the mpiexec.exe application with the requires parameters. The
mpiexec.exe application runs, in turn, the required number of program instances in the parallel
mode, and these processes try to solve the task. In particular, the Programming Taskbook sends
input data to all processes and receives obtained results from them.
It should be noted that the Programming Taskbook window is displayed by the master process
of the parallel program, while all slave processes (as well as the first instance of the program,
which creates and runs the batch file) are running in the "invisible" mode.
After closing the Programming Taskbook window all processes finish, then the batch file
finishes, and at last the first instance of the program finishes and we return into the IDE.
